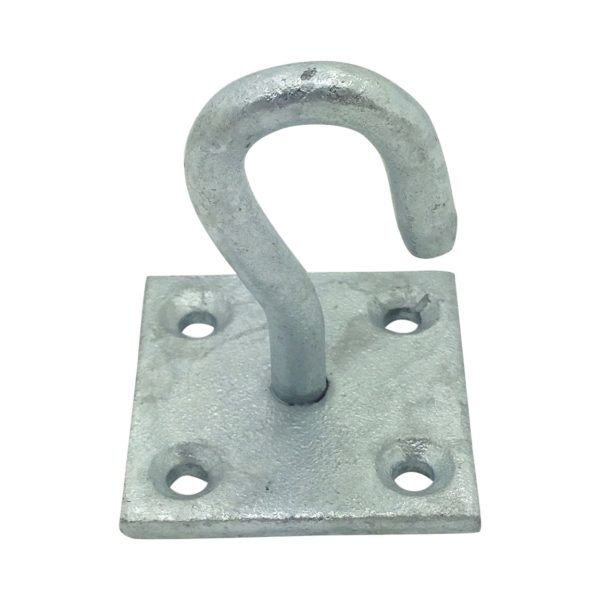

8mm Galvanised Hook on Plate

Heavy Duty Galvanised Steel - Surface Mounted Utility Hook

Deacon Products Logo

Product Overview

The 8mm Galvanised Hook on Plate is a robust storage and utility solution designed to organise and secure equipment in demanding environments. Unlike closed rings or staples, the open hook design facilitates immediate access, making it excellent for holding coiled ropes, garden hoses, stable tack, or tools that need to be grabbed quickly.

Constructed from 8mm diameter mild steel rod welded to a 50mm square plate, this fitting offers substantial strength for general utility use. The entire unit is hot-dip galvanised, creating a thick, durable zinc coating that prevents rust and corrosion, ensuring a long service life even when exposed to damp conditions in barns, sheds, or on boat decks.

Key Features

  • Material: Hot-Dipped Galvanised Steel for superior weather resistance.
  • Design: 8mm open hook on a 50mm square fixing plate.
  • Installation: Four pre-drilled holes for secure surface fixing.
  • Application: Ideal for hanging ropes, hoses, buckets, and tools.
Important Safety Notice: This product is a non-load-rated component. The information provided is for guidance only. This product is NOT designed for overhead lifting. It is intended for storage and static suspension only. Deacon Products assumes no liability for misuse or misapplication.

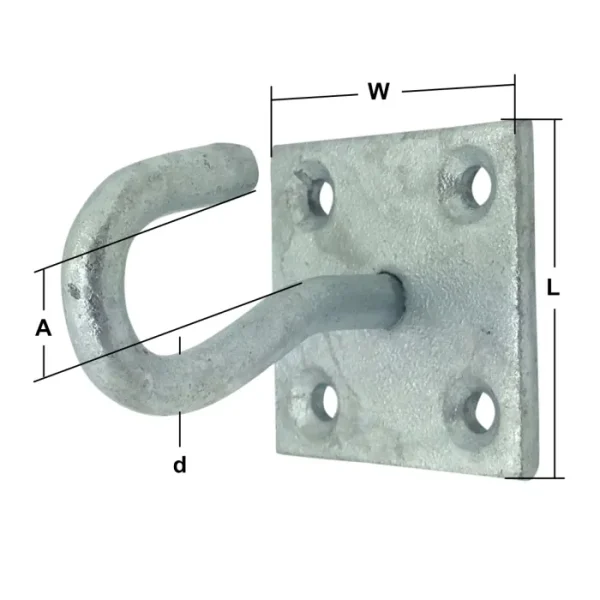

8mm Galvanised Hook on Plate Technical Drawing

Technical Specifications

The following table outlines the key dimensions for the Galvanised Hook on Plate.

Part Code d (Diameter) W (Width) L (Length) A (Opening)
GAHOP08 8mm 50mm 50mm 14mm
