Product Overview
Our 6mm Galvanised Staple on Plate is a fundamental piece of hardware for creating permanent lashing points on flat surfaces. Manufactured from tough mild steel and finished with a hot-dipped galvanised coating, this fitting is built to withstand harsh outdoor conditions, including exposure to rain and marine environments, without succumbing to rust or corrosion.

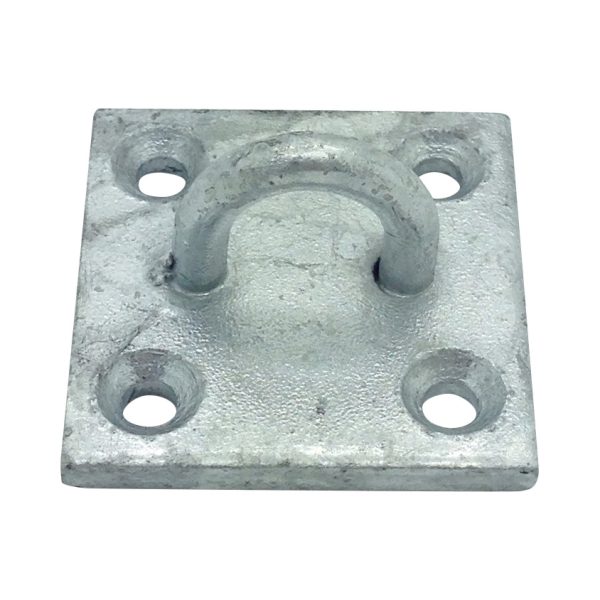

The unit features a 6mm diameter staple loop welded securely to a 50mm square plate. This design provides a strong, low-profile anchor point suitable for a wide range of applications, from securing tarpaulins and animal tethers in agricultural settings to acting as a deck eye on boats.
Key Features
- Material: Hot-Dipped Galvanised Steel for superior weather resistance.
- Design: Welded 6mm staple on a 50mm square fixing plate.
- Installation: Pre-drilled holes for secure surface mounting.
- Application: Ideal for wall mounts, stable ties, and marine decking.
Important Safety Notice: This product is a non-load-rated component. The information provided is for guidance only. This product is NOT designed for overhead lifting. It is intended for static lashing, tethering, and securing applications only. Deacon Products assumes no liability for misuse or misapplication.
Technical Specifications

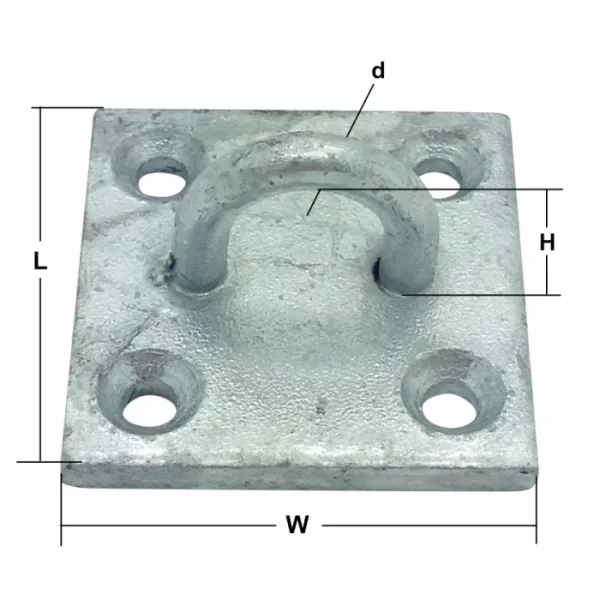

The following table outlines the key dimensions for the Galvanised Staple on Plate.
| Part Code | d (Diameter) | W (Width) | L (Length) | H (Height) |
|---|---|---|---|---|
| GASOP08 | 6mm | 50mm | 50mm | 16mm |
