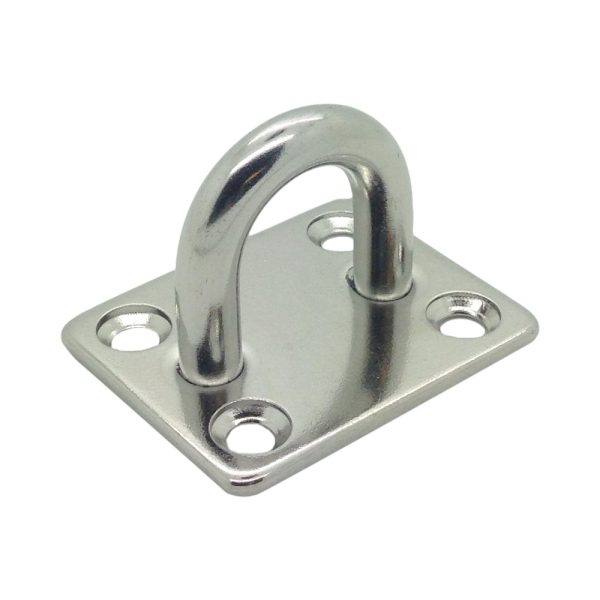

Stainless Steel Square Eye Plate

Marine Grade A4 (AISI 316) - Flush Mount Deck Plate

Deacon Products Logo

Product Overview

Our Stainless Steel Square Eye Plates are the gold standard for creating permanent lashing points in marine and architectural environments. Cast from high-quality A4 (AISI 316) marine-grade stainless steel, these fittings are engineered to withstand the harshest outdoor conditions without rusting, pitting, or staining.

Each unit features a robust eye welded centrally to a square base plate. The plate is designed with four countersunk holes, allowing for a flush, low-profile installation on walls, posts, or decking. Whether used for anchoring shade sails, securing bimini tops, or general garden trellis work, these eye plates provide a sleek, durable, and professional finish.

Key Features

  • Material: A4 (AISI 316) Marine Grade Stainless Steel.
  • Design: Welded loop on a square fixing plate.
  • Installation: Four countersunk holes for flush mounting.
  • Application: Ideal for boat decks, shade sails, and wall mounts.
Important Safety Notice: This product is a non-load-rated component. The information provided is for guidance only. This product is NOT designed for overhead lifting. It is intended for static lashing, tethering, and securing applications only. Deacon Products assumes no liability for misuse or misapplication.

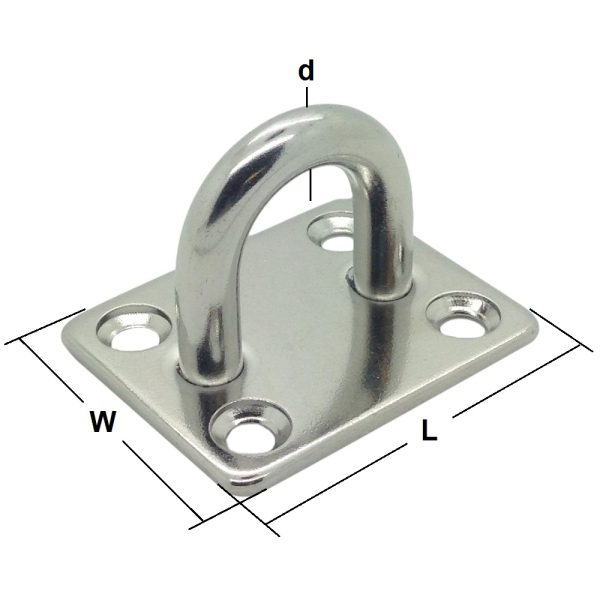

Stainless Steel Square Eye Plate Technical Drawing

Technical Specifications

The following table outlines the key dimensions for the Stainless Steel Square Eye Plate range.

Part Code d (Diameter) W (Width) L (Length) H (Height)
SSEP05 5mm 30mm 35mm 12mm
SSEP06 6mm 35mm 40mm 17mm
SSEP08 8mm 40mm 50mm 22mm
SSEP10 10mm 48mm 60mm 28mm
