Product Overview

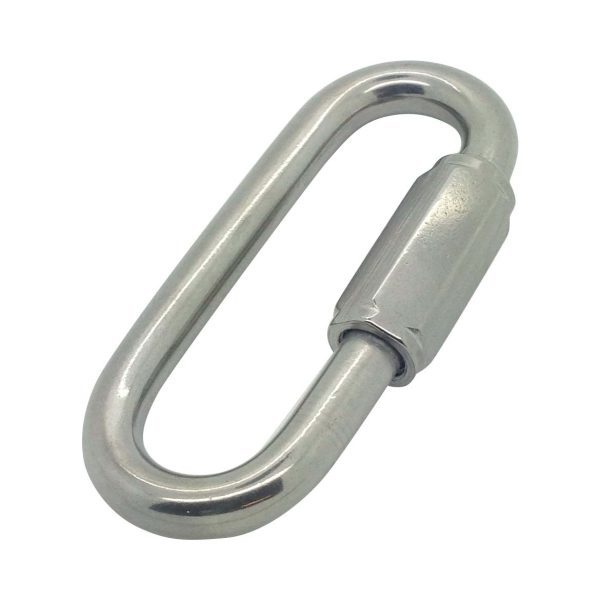

Our Stainless Steel Long Pattern Quick Links are an essential component for architectural rigging, marine hardware, and general construction. Unlike standard quick links, this "Long Pattern" variation features an extended body length. This design advantage provides significantly more internal clearance, allowing the link to fit over wider connection points, connect two chains with ease, or provide extra reach in an assembly.
Forged from premium A4 (AISI 316) marine-grade stainless steel, these links offer exceptional resistance to rust and pitting, even in harsh coastal environments. The threaded sleeve can be easily tightened by hand or with a wrench for a more permanent seal, ensuring a robust connection that maintains the sleek aesthetic of stainless steel rigging.
Technical Specifications

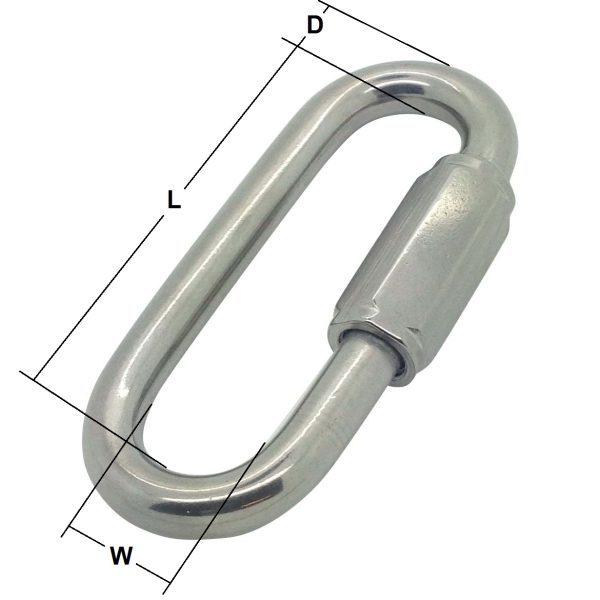

The following table outlines the key dimensions and part codes for our range of Long Pattern Quick Links.
| Part Code | D (Diameter) | W (Width) | L (Length) | Admittance |
|---|---|---|---|---|
| SSLPQL05 | 5mm | 13mm | 52mm | 10mm |
| SSLPQL06 | 6mm | 14mm | 60mm | 14mm |
| SSLPQL08 | 8mm | 17mm | 75mm | 17mm |
| SSLPQL10 | 10mm | 20mm | 85mm | 20mm |
| SSLPQL12 | 12mm | 23mm | 100mm | 23mm |
