Product Overview

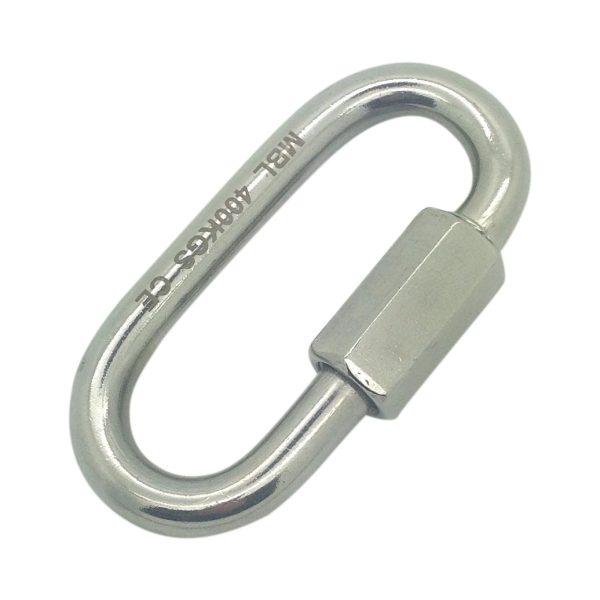

Secure your heavy-duty rigging and marine assemblies with our Stainless Steel Load Rated Quick Links. Manufactured from high-grade AISI 316 stainless steel, these robust connectors offer superior corrosion resistance and durability in harsh environments.
Unlike standard commercial links, this range is fully load-rated, with every individual link clearly stamped with its Minimum Breaking Load (MBL) for complete traceability and safety assurance. The precision-threaded hex nut provides a secure, vibration-resistant closure.
Key Features
- Material: Marine Grade Stainless Steel (AISI 316).
- Traceability: Each link stamped with M.B.L.
- Corrosion Resistance: Excellent for marine/outdoor use.
Technical Specifications

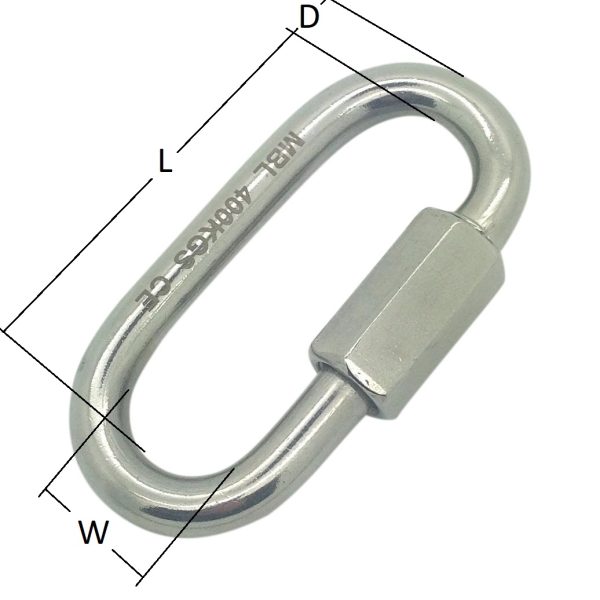

The following table outlines the key dimensions and Minimum Breaking Loads (M.B.L.) for our range of load rated quick links.
| Part Code | D (Diameter) | L (Length) | W (Width) | Admittance | M.B.L. |
|---|---|---|---|---|---|
| SSLRQL05 | 5mm | 39mm | 13mm | 6.5mm | 160 kg |
| SSLRQL06 | 6mm | 45mm | 14mm | 7.5mm | 230 kg |
| SSLRQL08 | 8mm | 58mm | 17mm | 10mm | 400 kg |
| SSLRQL10 | 10mm | 72mm | 21mm | 12mm | 640 kg |
| SSLRQL12 | 12mm | 81mm | 24mm | 14.5mm | 920 kg |
Important Safety Notice: The Minimum Breaking Load (M.B.L.) figures provided are for guidance and represent the ultimate strength of the component. For lifting or critical applications, a suitable Factor of Safety (typically 5:1 or greater) must be applied to determine the Safe Working Load (S.W.L.). Always ensure the connecting components are of compatible strength and material. Deacon Products assumes no liability for misuse or misapplication.
