Product Overview

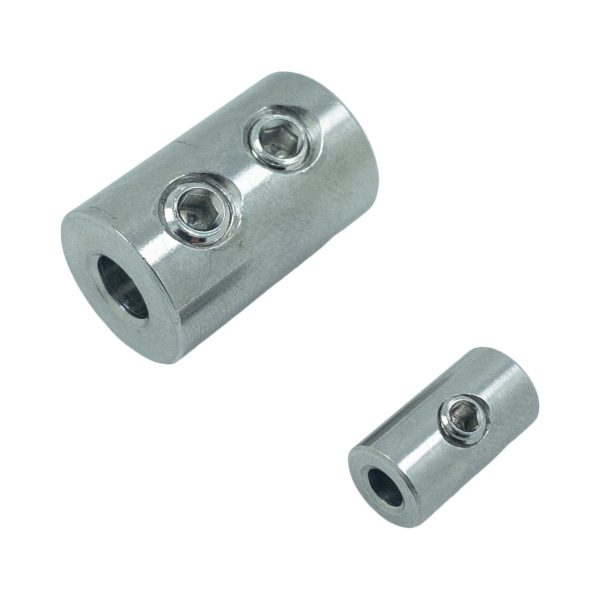

Create neat and simple loops in your wire rope with our Stainless Steel Loop Clamps. This compact fitting slides over the wire and is secured with grub screws, providing a tidy finish without the need for bulky clamps or hydraulic presses. Manufactured from high-quality A4 (AISI 316) marine-grade stainless steel, it offers excellent corrosion resistance, making it perfect for architectural use, garden trellis, display systems, and light-duty decorative applications.
Important Safety Notice: These clamps are not rated for lifting applications. They are designed for light-duty, static, or decorative applications only. Do not use for overhead lifting or any safety-critical application. Installation must be performed by a competent person.
Technical Specifications

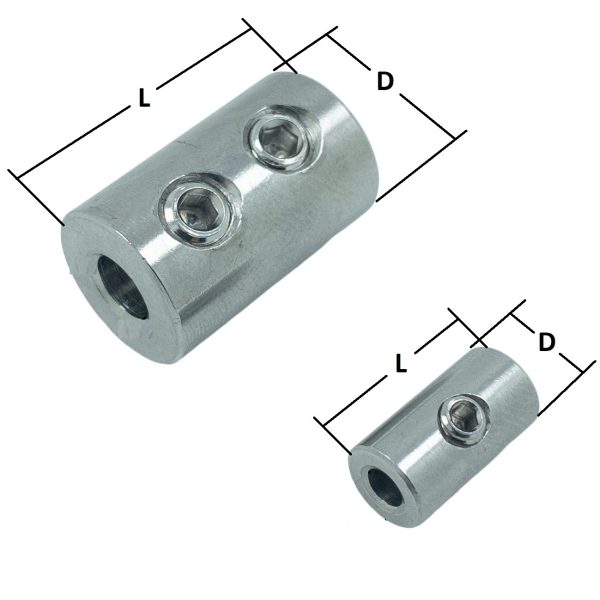

The following table outlines the key dimensions for our range of stainless steel loop clamps.
| PART CODE | WIRE DIAMETER |
D (BODY DIAMETER) |
L (LENGTH) |
|---|---|---|---|
| SSLC | 1.5mm | 8mm | 15mm |
| SSJLC | 3mm | 16mm | 25mm |
Important Safety Notice: The information provided is for guidance and reference purposes only. Dimensions and specifications are approximate and subject to manufacturing tolerances. This product is NOT load-rated and is not suitable for lifting, overhead lifting, or any safety-critical applications. It is intended for general purpose, non-critical, or securing applications only. A competent person must determine the suitability of this product for any given application. Deacon Products assumes no liability for the misuse or misapplication of this information or our products.
