8" Hand Held Wire Rope Swager

Compact Crimping Tool - DIN 1.5 & 2

Deacon Products Logo

Product Overview

The Deacon Wire 8" Hand Held Wire Rope Swager is a dedicated tool for creating professional terminations on small diameter wire rope. Compact and lightweight, it is designed to crimp 1.5mm and 2mm aluminium or copper ferrules (DIN standard) with precision.

The tool features machined jaws with three crimping cavities to ensure a uniform swage that holds fast. Integral side cutters allow for easy trimming of the wire, making this an all-in-one solution for light rigging and display applications.

Key Features

  • Capacity: Crimps 1.5mm and 2mm DIN ferrules.
  • Precision: 3-cavity jaws for accurate swaging.
  • Versatile: Integrated side cutters for wire trimming.
  • Comfort: Vinyl-coated handles for grip.
  • Portable: Compact 8" size fits in any toolbox.

Not for Lifting

This is a hand tool. Swages are for general securing only. Proof-test if safety is critical. Do not use for overhead lifting without testing.

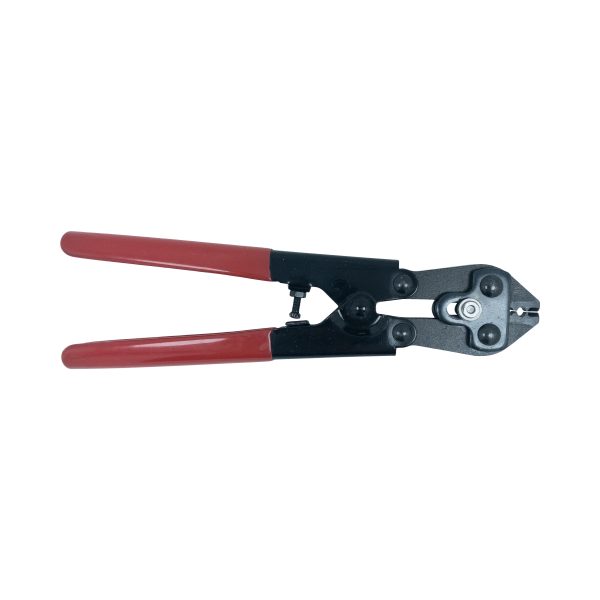

8 inch Hand Held Wire Rope Swager

Technical Specifications

Product Part Code Size To Swage
8" Hand Held Wire Rope Swager WIRESWAGER08 8" DIN 1.5, 2
Disclaimer: The information provided in this datasheet is for guidance and reference purposes only. While every effort has been made to ensure accuracy, Deacon Products assumes no liability for any errors or omissions. This tool is designed for swaging specific ferrules as described; misuse or use on incompatible materials may result in failure. Always proof-load critical assemblies.
