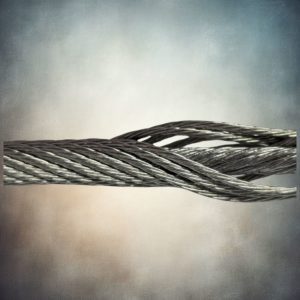

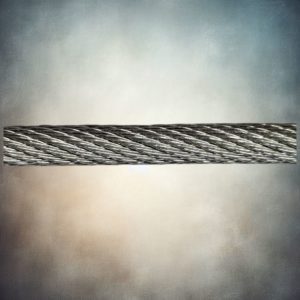

19×7 Galvanised Wire Rope Anti-Spin 1960 N/mm² RHOL – Superior Anti-Twist & High Strength – The Ideal Choice for Critical Lifting Applications in the UK
Our 19×7 galvanised steel wire rope, made with a 1960 N/mm² minimum tensile strength and right-hand ordinary lay (RHOL), is the perfect solution for your critical lifting and rigging applications across the UK. This wire rope is designed for its exceptional anti-spin properties, strength, and corrosion resistance, making it an excellent choice for both indoor and outdoor use.
19×7 Non Spin Galvanised Wire Rope Sizes
| Diameter | Weight Per 100m (Kg) | MBL - 1960 Grade Galvanised (kN) | MBL -1960 Grade Galvanised (kg) |
|---|---|---|---|
| 3.0mm | 3.61 | 5.79 | 590 |
| 4.0mm | 6.42 | 10.29 | 1049 |
| 5.0mm | 10.03 | 16.07 | 1638 |
| 6.0mm | 14.44 | 23.10 | 2359 |
| 7.0mm | 19.65 | 31.50 | 3211 |
| 8.0mm | 25.66 | 41.10 | 4194 |
| 10.0mm | 40.10 | 64.30 | 6553 |
| 11.0mm | 48.52 | 77.80 | 7930 |
| 12.0mm | 57.74 | 92.60 | 9437 |
| 13.0mm | 67.77 | 108.60 | 11075 |
| 16.0mm | 102.66 | 164.60 | 16776 |
Key Features
- High Tensile Strength: With a rating of 1960 N/mm², this wire rope offers exceptional durability and strength.
- Galvanised Coating: Provides superior corrosion resistance, ensuring longevity even in harsh environments.
- 19×7 Construction: Composed of 19 strands of 7 wires each, offering excellent anti-spin properties.
- Anti-Spin Design: Minimises rotation under load, making it ideal for lifting applications.
- Right Hand Ordinary Lay (RHOL): Enhances ease of handling and installation.
- Diameter Options: Available in various diameters to suit different needs and applications.
- High-Quality Steel: Manufactured from premium-grade steel for reliable performance.
- Smooth Surface Finish: Minimises abrasion and wear during use.
Key Benefits
- Anti-Spin Properties: The 19×7 construction reduces rotation under load, ensuring safer and more stable lifting operations.
- Durability: The high tensile strength and galvanised coating extend the lifespan, reducing the need for frequent replacements.
- Corrosion Resistance: Ideal for outdoor and marine environments where exposure to moisture and chemicals is common.
- Ease of Use: RHOL construction makes it easier to handle, install, and maintain.
- Cost-Effective: Long-lasting performance ensures better return on investment over time.
Applications
- Marine Operations: Perfect for lifting and hoisting applications due to its anti-spin properties and resistance to corrosion.
- Construction: Used in cranes and hoists for lifting heavy loads with minimal rotation.
- Industrial: Suitable for use in machinery and equipment that require robust, anti-spin wire ropes.
- Transportation: Employed in the manufacturing of cables for elevators and other lifting mechanisms.
- Utilities: Utilised in power line installation and maintenance requiring stable lifting operations.
Why Choose Deacon Wire Rope ?
- Trusted Quality: Manufactured from high-grade steel and adhering to relevant British and European standards.
- Reliable Performance: Delivers exceptional strength and flexibility for demanding tasks.
- Cost-Effective Solution: Competitive pricing without sacrificing quality or performance.
- Wide Range of Diameters: Available in various diameters to suit your specific load requirements.
- Expert Support: Our knowledgeable team is here to assist you in choosing the right wire rope for your project.
